| Model | OM-3816 |
| Motor power | 370W |
| Spindle speed | 1400(50Hz) / 1720(60Hz) |
| Chisel capacity | 6mm - 16mm (1/4 - 5/8inches) |
| Maximum mortising depth | 76mm (3inches) |
| Drill chuck capacity | 1mm - 13mm |
| Maximum clamping width | 80mm |
| Spindle to fence (maximum) | 50mm |
| Chisel to table (maximuim) | 100mm |

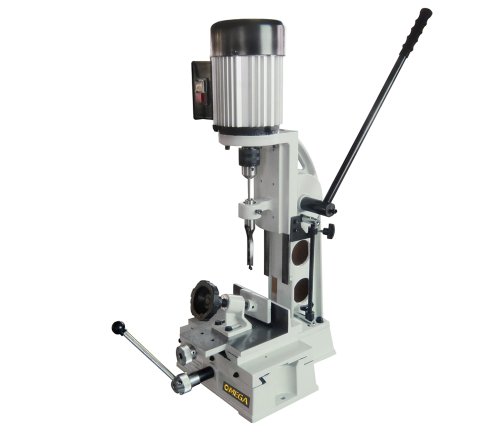

This bench top morticer has the huge benefit of both lateral (side to side, X axis) and longitudinal(front to back, Y axis).
a) Integral material clamp
b) Lateral table movement 160mm
c) Longitudinal movement 40mm
d) Max workpiece 110mm H x 120mm W
Tips: Fill in the message before you can get the product parameter manual
