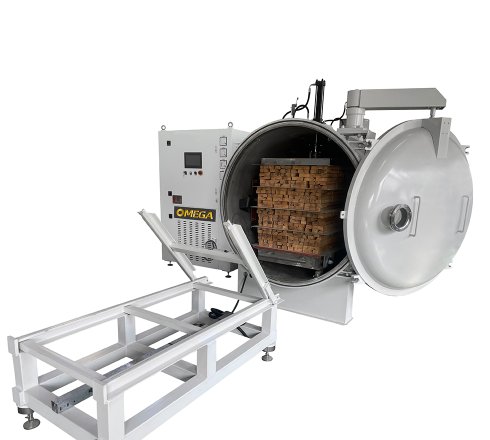

Fully automatic control of wood drying process,truly "unattended". A variety of drying process options,multiple sensor monitoring devices to ensure the quality of wood drying. Intuitive operation interface, support remote assistance, realize remote maintenance and system upgrade (optional)
Model | ||||||
| Capacity | 1 | 3 | 4.5 | 5 | 6 | 10 |
| Power Supply | AC 380V, 50Hz | AC 380V,50Hz | AC 380V,50Hz | AC 380V,50Hz | AC 380V,50Hz | AC 380V,50Hz |
| HF power | 10/15KW | 10/20KW | 20/30KW | 20/30KW | 20/30KW | 30/50KW |
| HF frequency | 6.78/13.56MHz | 6.78/13.56MHz | 6.78/13.56MHz | 6.78/13.56MHz | 6.78/13.56MHz | 6.78/13.56MHz |
| Vacuum | -0.092MPa | -0.092MPa | -0.092MPa | -0.092MPa | -0.092MPa | -0.092MPa |
| Effective drying size(L*W*H) | 2100x700x700mm | 3000x1000x1000mm | 4500x1000x1000mm | 3000x1300x1300mm | 6000x1000x1000mm | 6000x1300x1300mm |
Tips: Fill in the message before you can get the product parameter manual
