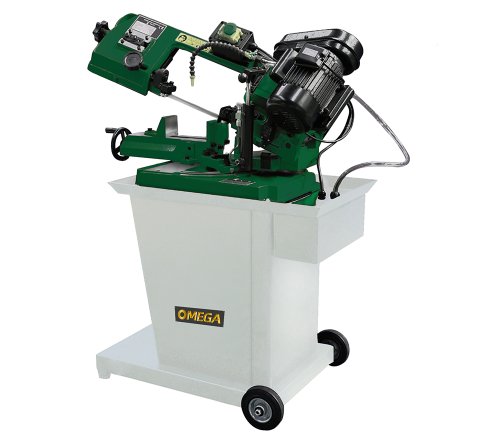

| Model | OM-MCB128 |
| Motor | 3/4HP, 220V, single-phase |
| Blade size | 1638x13x0.65mm |
| Cutting at 45 degree | ●85mm, ▆80x80mm |
| Cutting at 60 degree | ●30mm, ▆75x25mm |
| Cutting at 90 degree | ●128mm, ▆125x120mm |
| Saw blade dimensions | 1640x127x0.64mm(Bi-Metal saw blade) |
| Vice tilt | 0°~45° |
| Speed (50Hz) | 24,35,55m/min |
* All cast iron frame and bed
* Quick release vice and swivel cutting head from -45° to +60°
* Hydraulic down feed control with infinitely variable adjustment
* 3 speed belt drive to allow the machine to cope with a wide variety of materials
* Automatic down feed stop
* All ball bearing blade guides
* Pull-out handle and wheels to allow easy movement around the workshop
* Full close stand with Drip Tray for easier working with cooling system
* Bi-Metal Saw blade fitted as standard
Tips: Fill in the message before you can get the product parameter manual
